To Know Dryzone More

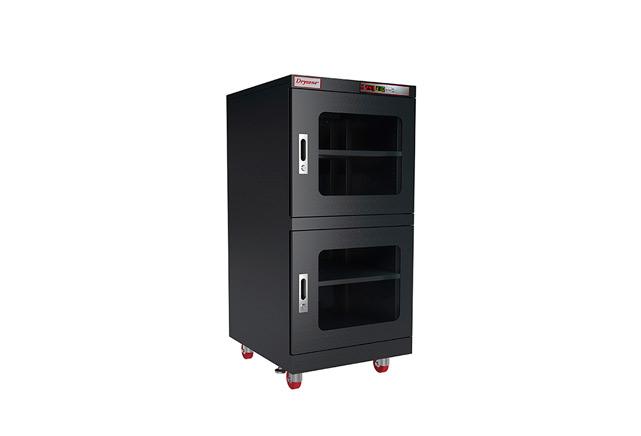

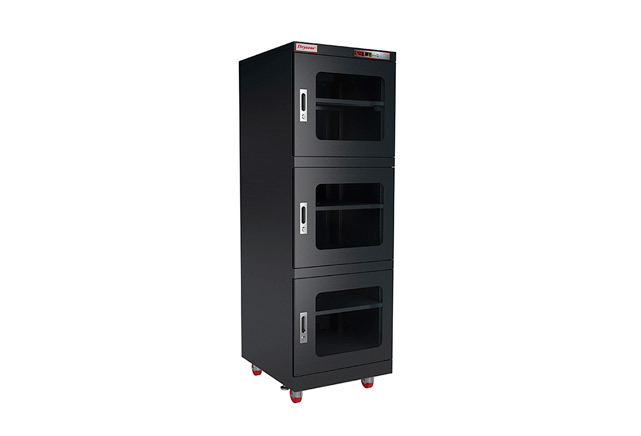

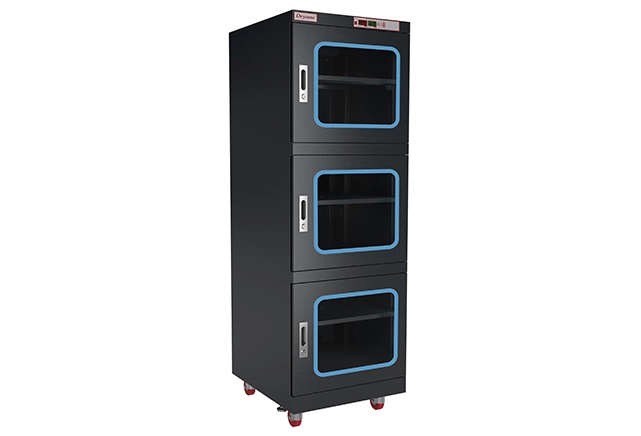

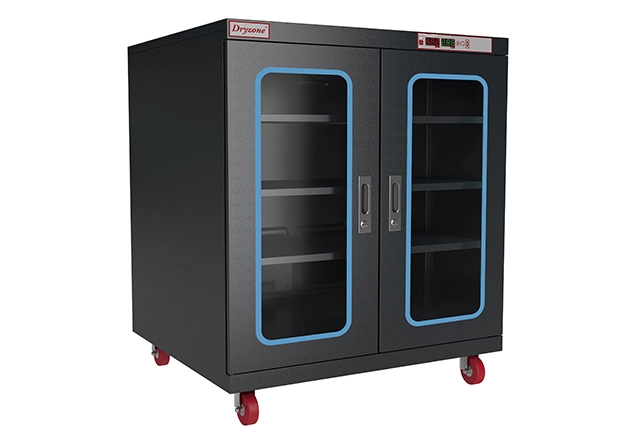

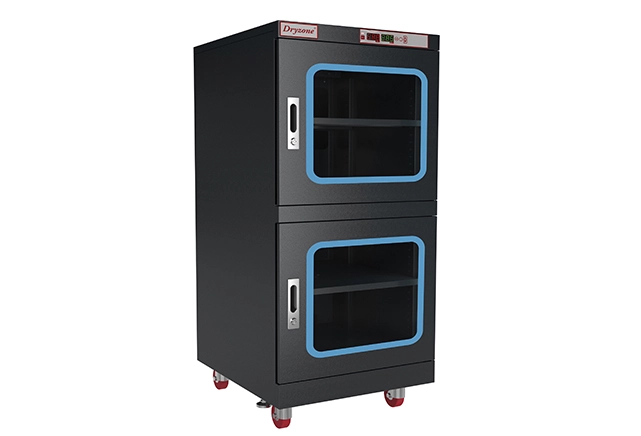

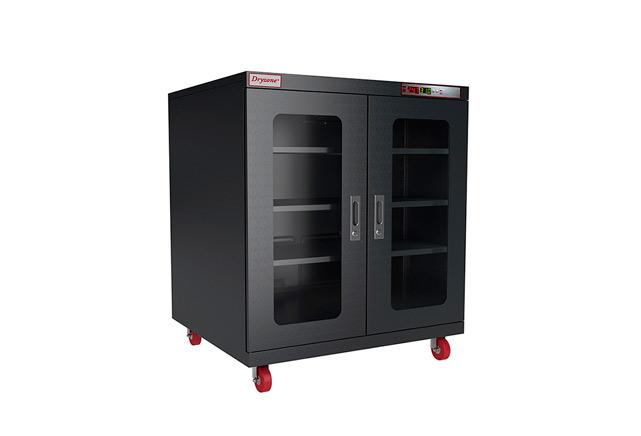

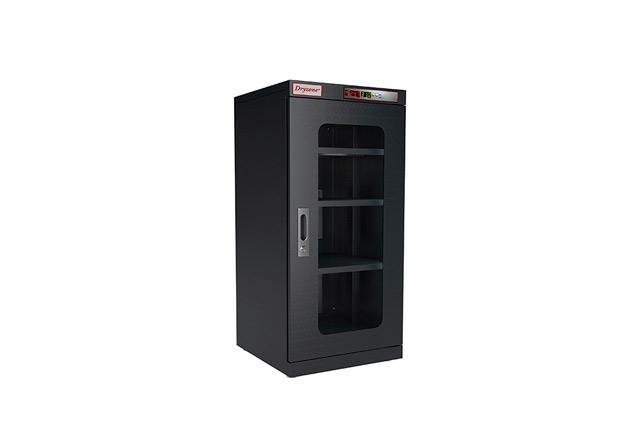

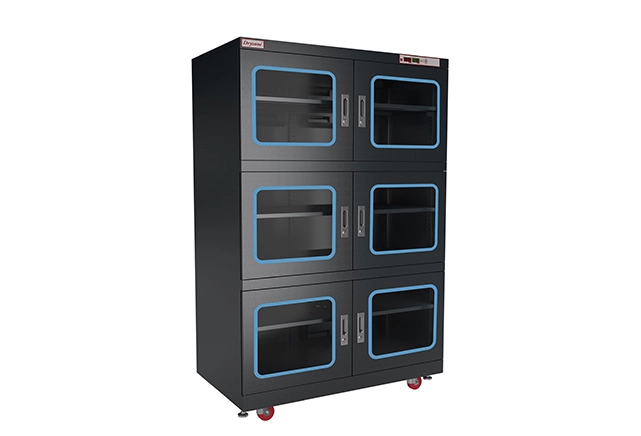

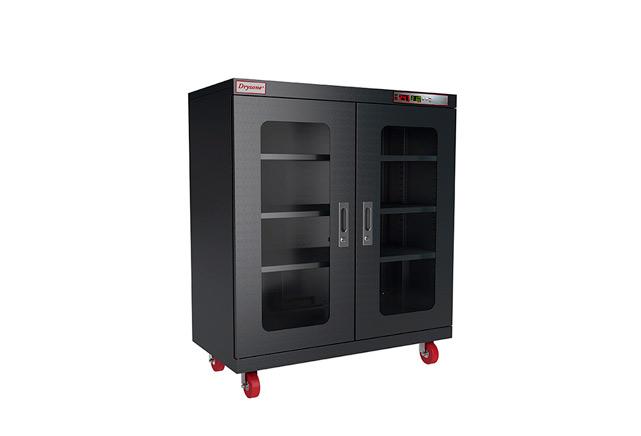

C2E Series humidity control dry box is auto less than < 5% RH, just plug it, and it could work. According to IPC/JEDEC J-STD-033 standards, moisture-sensitive device (MSD) levels of 4, 5, 5a, and 6 should be stored in a <5%RH environment. C2E Series humidity control dry cabinet is specially designed for this need. And the recovery time is 30 minutes after opening the door and closed within 30 seconds without fill N2.
Outside Dimension | W1200*D695*H1820MM |
Internal Dimension | W1198*D645*H1618MM |
Capacity | 1250L |
Shelves | 5 shelves |
Power Consumption | 105w/h(Ave); 300w/h(Max) |
Color | Black |
ESD Paint | 106~109Ω (surface resistance) |
Voltage | 230V/110V |
Outside Dimension | W600*D695*H1820MM |
Internal Dimension | W598*D645*H1618MM |
Capacity | 624L |
Shelves | 5 shelves |
Power Consumption | 55w/h(Ave); 150w/h(Max) |
Color | Black |
ESD Paint | 106~109Ω (surface resistance) |
Voltage | 230V/110V |
Outside Dimension | W600*D695*H1274MM |
Internal Dimension | W598*D645*H1071MM |
Capacity | 413L |
Shelves | 3shelves |
Power Consumption | 55w/h(Ave); 150w/h(Max) |
Color | Black |
ESD Paint | 106~109Ω (surface resistance) |
Voltage | 230V/110V |
Outside Dimension | W905*D823*H1050MM |
Internal Dimension | W903*D773*H869MM |
Capacity | 607L |
Shelves | 3shelves |
Power Consumption | 55w/h(Ave); 150w/h(Max) |
Color | Black |
ESD Paint | 106~109Ω (surface resistance) |
Voltage | 230V/110V |
Outside Dimension | W905*D475*H1050MM |
Internal Dimension | W903*D425*H869MM |
Capacity | 334L |
Shelves | 3shelves |
Power Consumption | 55w/h(Ave); 150w/h(Max) |
Color | Black |
ESD Paint | 106~109Ω (surface resistance) |
Voltage | 230V/110V |
Outside Dimension | W600*D672*H1820MM |
Internal Dimension | W448*D425*H869MM |
Capacity | 165L |
Shelves | 3shelves |
Power Consumption | 55w/h(Ave); 150w/h(Max) |
Color | Black |
ESD Paint | 106~109Ω (surface resistance) |
Voltage | 230V/110V |
Humidity range | <5%RH |
Display Precision | 3%RH, 1℃ |
Structure | 1mm thick carbon steel with paint. |
Door | Handles, airtight magnetic sealers, and reinforced glass. |
Wheel | Four 3'' wheels, two of them with brakes. |
Grounding Wire | 1MG (940mm Long) |
Our industrial drying cabinets are engineered to meet the unique needs of industries such as construction, automotive, aviation, and military, as well as other applications that require high-performance drying. Our ESD dry cabinets are constructed using premium materials and advanced technology, ensuring that they are built to withstand harsh environments and heavy usage.

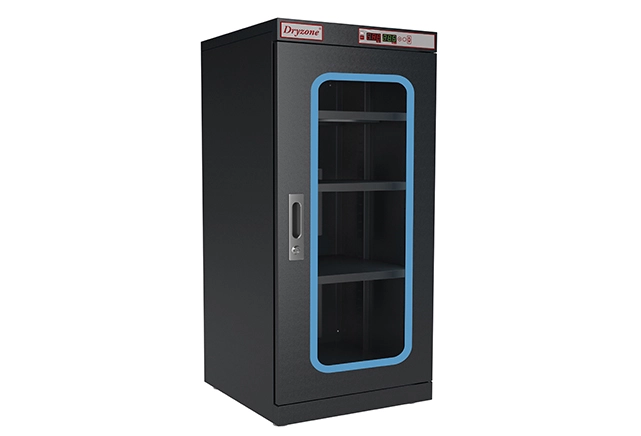

Dryzone CF1 Series: <1 Rh Low Humidity Cabinet
Dryzone C2E Series: <5% Rh Humidity Control Dry Cabinet
Dryzone C1U/C1B Series: 1-50% Rh Humidity Storage Cabinet

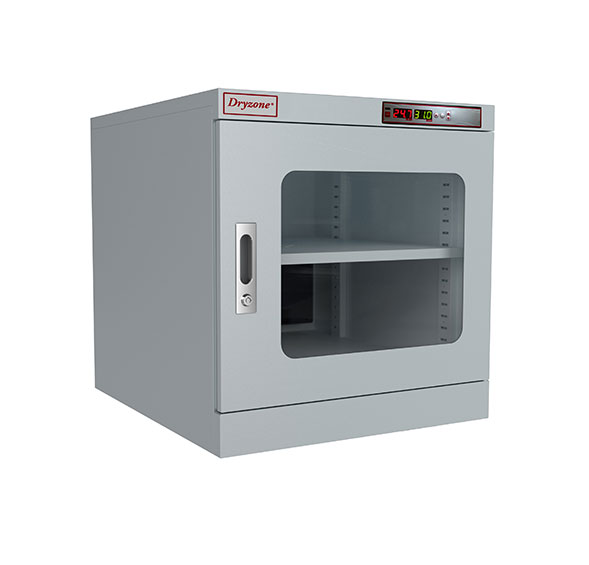

Dryzone C15U/C15B Series: 15-50% Rh Dry Box Desiccator
