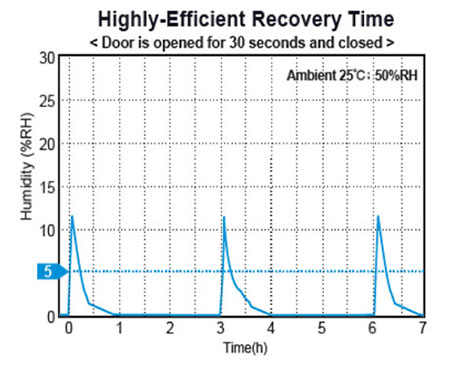

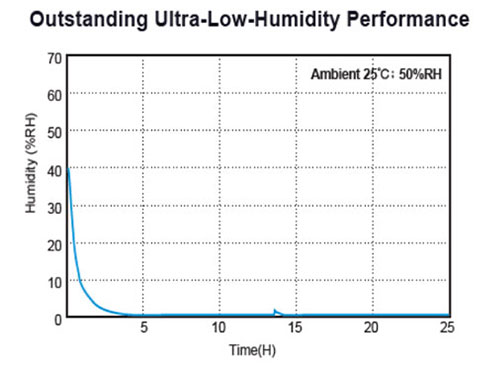

CF Series is a plug-and-play, fully auto-dry ultra-low humidity dry cabinet that will be stable at <1% RH. There is no need to set the panel buttons at all. Our ultra-low humidity dry cabinet series is specially designed for MSD (moisture-sensitive materials) to comply with IPC J-STD-033 Standard. CF low-humidity storage cabinets series offers high humidity control, and fast recovery time and is supplied with an anti-static body structure, adjustable shelves, wheels (except the 157 and 200 bench top), locking doors, and a decimal digital display.

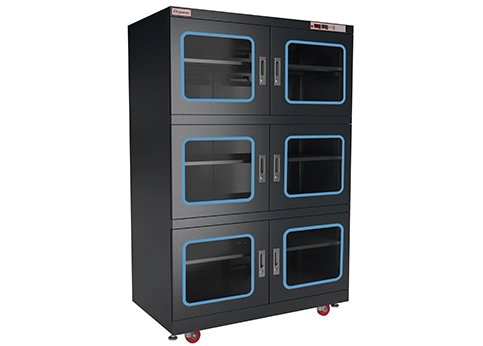

| Outside Dimension: | W1200*D672*H1820MM |
| Internal Dimension: | W1198*D644*H1618MM |
| Capacity: | 1250L |
| Shelves: | 5 shelves |
| Power Consumption: | 135w/h(Ave);425w/h(Max) |
| Color: | Black |
| Voltage: | 230V/110V |

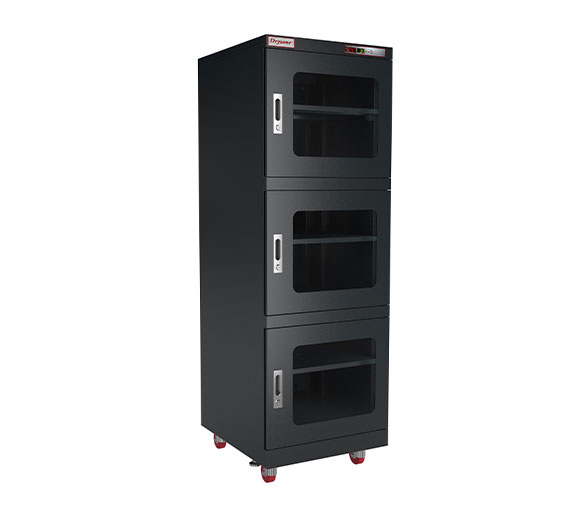

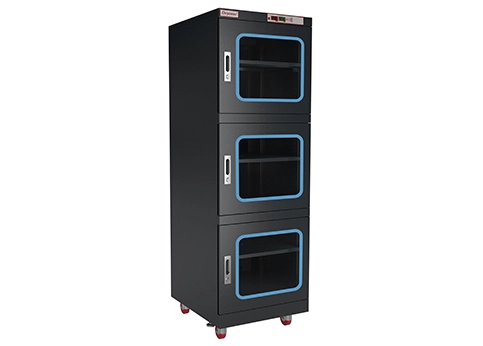

| Outside Dimension: | W600*D672*H1823MM |
| Internal Dimension: | W598*D645*H1617MM |
| Capacity: | 624L |
| Shelves: | 5 shelves |
| Power Consumption: | 83w/h(Ave);285w/h(Max) |
| Color: | Black |
| Voltage: | 230V/110V |
| Display Precision: | 3%RH: 1 |
| Structure: | 1mm thick carbon steel with paint. |
| Door: | Handles, airtight magnetic sealers, and reinforced glass. |
| Wheel: | Four 3'' wheels, two of them with brakes. |
| ESD Paint: | 106~109Ω (surface resistance) |
| Grounding Wire: | 1MG (940mm Long) |
